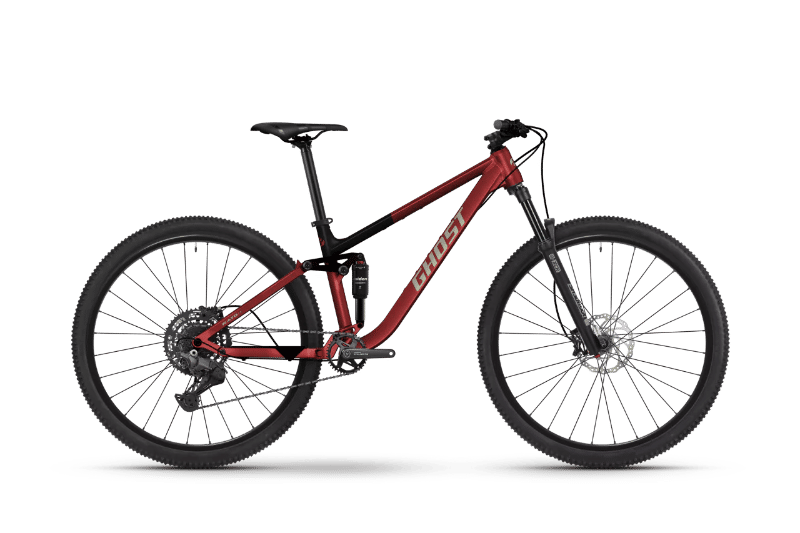

2025 Ghost Kato FS geometry
Full frame geometry for the 2025 Ghost Kato FS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 587 | 451 | 77 | 66 | 110 | 586 | 395 | 21.6 | 430 | 1181 |
| XS | 587 | 415 | 77 | 66 | 110 | 550 | 385 | 21.6 | 430 | 1145 |
| M | 625 | 463 | 77 | 66 | 120 | 606 | 415 | 36.2 | 450 | 1231 |
| L | 639 | 494 | 77 | 66 | 135 | 641 | 435 | 36.2 | 450 | 1268 |
| XL | 662 | 521 | 77 | 66 | 160 | 674 | 465 | 36.2 | 450 | 1305 |
All measurements in millimetres unless marked (°) for angles.
