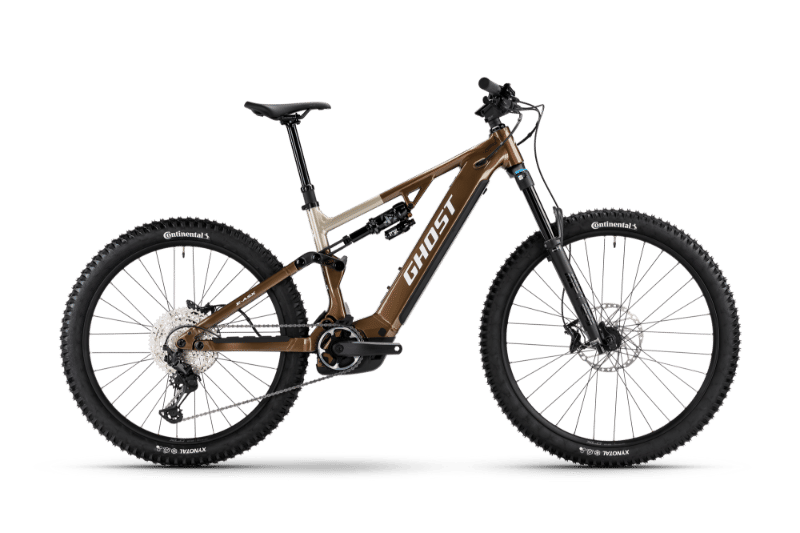

2026 Ghost E-ASX geometry
Full frame geometry for the 2026 Ghost E-ASX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 628 | 430 | 77 | 65 | 105 | 570 | 405 | 793 | 9.9 | 450 | 1208 |
| M | 632 | 455 | 77 | 65 | 110 | 597 | 430 | 796 | 9.9 | 450 | 1235 |
| L | 646 | 480 | 77 | 65 | 125 | 625 | 455 | 796 | 9.9 | 450 | 1266 |
| XL | 659 | 510 | 77 | 65 | 140 | 658 | 495 | 796 | 9.9 | 450 | 1303 |
All measurements in millimetres unless marked (°) for angles.
