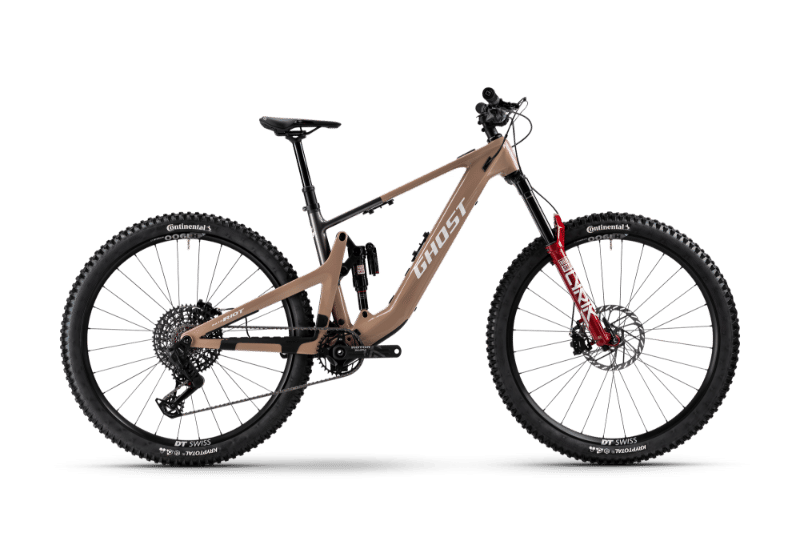

2026 Ghost Path Riot CF geometry
Full frame geometry for the 2026 Ghost Path Riot CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 604 | 441 | 76.5 | 63.5 | 90 | 581 | 417 | 778 | 38.1 | 446 | 1219 |
| M | 622 | 471 | 76.5 | 63.5 | 110 | 615 | 441 | 792 | 38.1 | 446 | 1258 |
| L | 644 | 497 | 76.5 | 63.5 | 140 | 647 | 465 | 817 | 33.3 | 455 | 1307 |
| XL | 662 | 527 | 76.5 | 63.5 | 160 | 681 | 489 | 835 | 33.3 | 455 | 1346 |
All measurements in millimetres unless marked (°) for angles.
