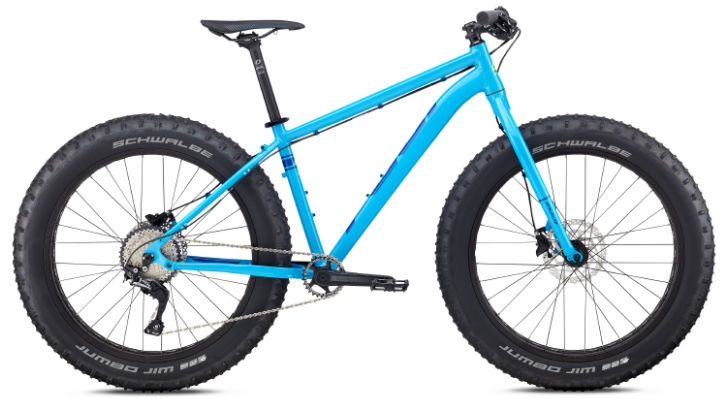

2015 Fuji Wendigo geometry
Full frame geometry for the 2015 Fuji Wendigo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/15 | 606 | 403 | 73 | 69.5 | 125 | 588 | 381 | 797 | 54 | 467 | 1126 | 50 |
| M/17 | 616 | 415 | 73 | 69.5 | 135 | 603 | 432 | 825 | 54 | 467 | 1142 | 50 |
| L/19 | 625 | 427 | 73 | 69.5 | 145 | 618 | 483 | 855 | 54 | 467 | 1158 | 50 |
| XL/21 | 634 | 439 | 73 | 69.5 | 155 | 633 | 533 | 883 | 54 | 467 | 1173 | 50 |
All measurements in millimetres unless marked (°) for angles.
