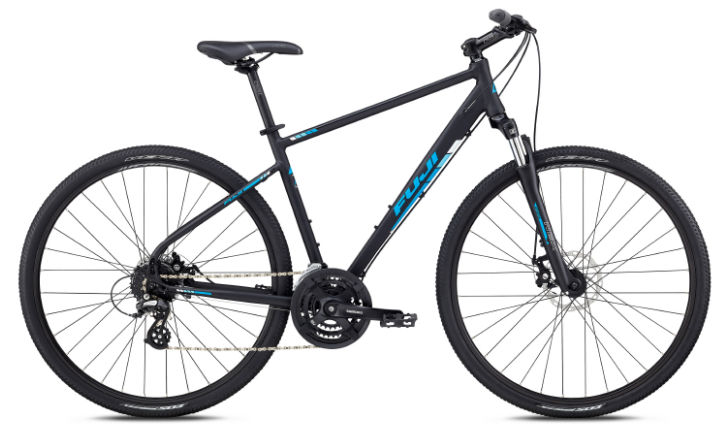

2017 Fuji Traverse geometry
Full frame geometry for the 2017 Fuji Traverse, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/15 | 594 | 365 | 72.5 | 70 | 110 | 552 | 380 | 757 | 60 | 460 | 1062 | 44 |
| S/17 | 604 | 381 | 73 | 70 | 110 | 571 | 440 | 801 | 60 | 460 | 1081 | 44 |
| M/19 | 624 | 380 | 71.5 | 70.5 | 120 | 589 | 482 | 833 | 60 | 460 | 1082 | 44 |
| L/21 | 639 | 391 | 71.5 | 70.5 | 155 | 605 | 533 | 851 | 60 | 460 | 1099 | 44 |
| XL/23 | 657 | 400 | 71.5 | 70.5 | 175 | 620 | 560 | 884 | 60 | 460 | 1114 | 44 |
All measurements in millimetres unless marked (°) for angles.
