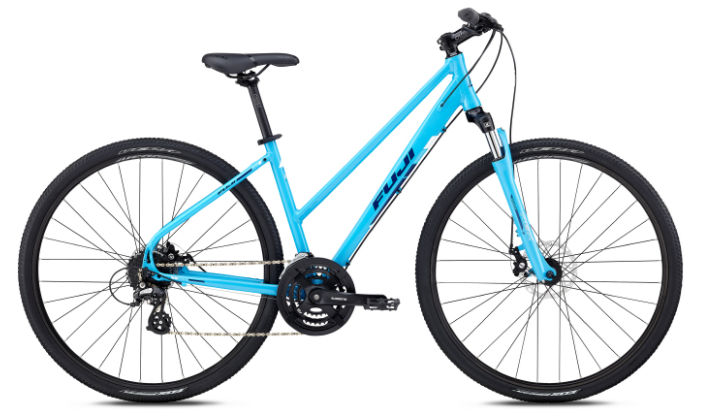

2017 Fuji Traverse ST geometry
Full frame geometry for the 2017 Fuji Traverse ST, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M/17 | 626 | 366 | 73 | 70 | 145 | 558 | 432 | 715 | 60 | 445 | 1062 | 45 |
| S/15 | 626 | 355 | 73 | 70 | 145 | 547 | 381 | 705 | 60 | 445 | 1050 | 45 |
| L/19 | 631 | 360 | 72 | 71 | 145 | 565 | 483 | 725 | 60 | 445 | 1045 | 45 |
| XL/21 | 640 | 367 | 72 | 71 | 155 | 575 | 533 | 739 | 60 | 445 | 1055 | 45 |
All measurements in millimetres unless marked (°) for angles.
