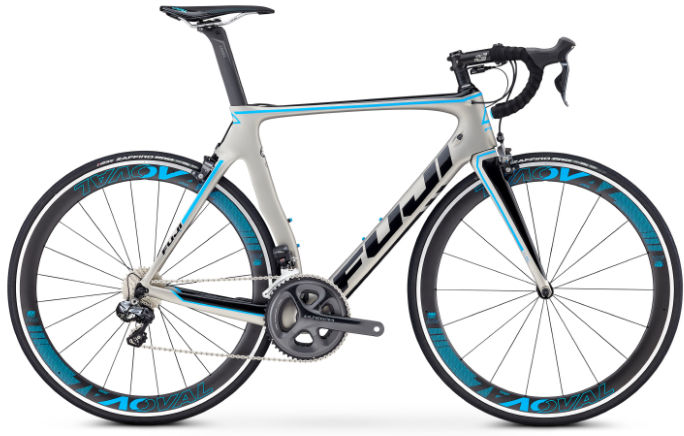

2015 Fuji Transonic geometry
Full frame geometry for the 2015 Fuji Transonic, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 495 | 377 | 75.5 | 70.8 | 100 | 505 | 440 | 735 | 68 | 585 | 405 | 980 | 52 | 62 |
| S | 497 | 384 | 75.3 | 71.5 | 100 | 515 | 470 | 752 | 68 | 587 | 405 | 982 | 52 | 57 |
| SM | 516 | 392 | 75 | 71.5 | 120 | 530 | 500 | 777 | 68 | 601 | 405 | 996 | 52 | 57 |
| M | 538 | 386 | 73.5 | 73 | 135 | 545 | 520 | 800 | 68 | 579 | 405 | 974 | 43 | 57 |
| ML | 557 | 389 | 73 | 73 | 155 | 560 | 540 | 821 | 68 | 591 | 405 | 986 | 43 | 57 |
| L | 577 | 404 | 73 | 73 | 175 | 580 | 560 | 841 | 68 | 608 | 405 | 1003 | 43 | 57 |
| L/XL | 596 | 418 | 73 | 73 | 195 | 600 | 590 | 867 | 68 | 627 | 405 | 1023 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
