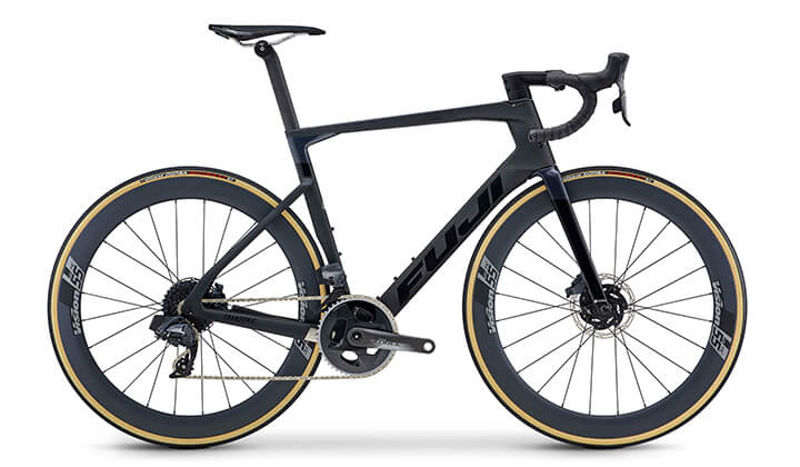

2022 Fuji Transonic Series geometry
Full frame geometry for the 2022 Fuji Transonic Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS 46cm | 487 | 367 | 74.8 | 70.6 | 93 | 500 | 440 | 730 | 73 | 410 | 971.3 | 52 | 63.7 |
| XS 49cm | 500 | 374 | 74.3 | 71 | 109 | 515 | 457 | 747 | 70 | 410 | 982 | 52 | 61.2 |
| S 52cm | 523 | 382 | 74.2 | 72 | 129 | 537 | 484 | 772 | 70 | 410 | 988 | 52 | 55 |
| M 54cm | 541 | 392 | 74.2 | 72.7 | 145 | 552 | 503 | 788 | 68 | 410 | 989 | 43 | 60.1 |
| L 56cm | 562 | 399 | 73.5 | 73 | 166 | 565 | 520 | 806 | 68 | 410 | 999 | 43 | 58.2 |
| XL 58cm | 576.5 | 410 | 73.5 | 73 | 183 | 581 | 538 | 824 | 66 | 410 | 1016 | 43 | 58.2 |
| XXL 61cm | 596 | 418 | 73 | 73 | 203 | 600 | 567 | 846 | 66 | 410 | 1030 | 43 | 58.2 |
All measurements in millimetres unless marked (°) for angles.
