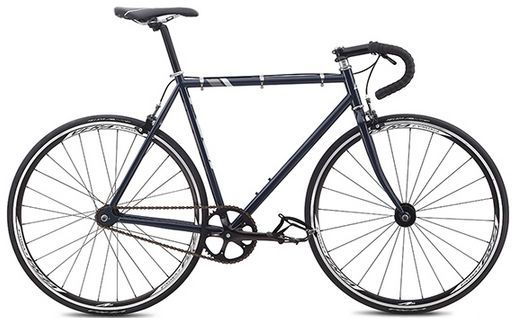

2014 Fuji Track geometry
Full frame geometry for the 2014 Fuji Track, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 464 | 384 | 76 | 72 | 100 | 501 | 430 | 703 | 33 | 571 | 395 | 964 | 40 | 59 |
| XSS | 501 | 383 | 75 | 71.5 | 90 | 517 | 490 | 747 | 58 | 583 | 410 | 986 | 45 | 64 |
| S | 509 | 393 | 74 | 72.5 | 95 | 540 | 520 | 763 | 58 | 587 | 410 | 990 | 45 | 58 |
| M | 520 | 391 | 73 | 72.5 | 105 | 550 | 540 | 778 | 58 | 583 | 410 | 986 | 40 | 63 |
| ML | 543 | 395 | 73 | 73.5 | 125 | 560 | 560 | 799 | 58 | 585 | 410 | 988 | 40 | 57 |
| L | 562 | 399 | 73 | 73.5 | 145 | 570 | 580 | 819 | 58 | 595 | 410 | 998 | 40 | 57 |
| XL | 589 | 405 | 72.5 | 74 | 170 | 591 | 610 | 846 | 58 | 599 | 410 | 1002 | 35 | 59 |
All measurements in millimetres unless marked (°) for angles.
