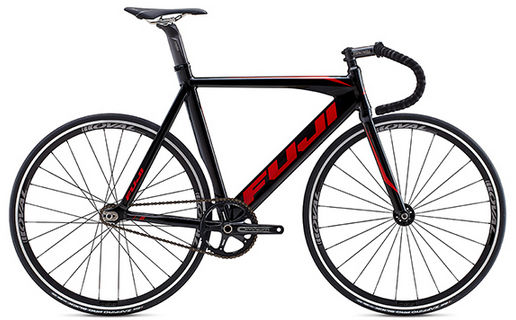

2014 Fuji Track Pro geometry
Full frame geometry for the 2014 Fuji Track Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XSS | 487 | 389 | 75 | 74 | 100 | 510 | 490 | 748 | 45 | 549 | 390 | 935 | 30 | 65 |
| S | 497 | 402 | 75 | 74 | 110 | 525 | 520 | 767 | 45 | — | 390 | — | 30 | 65 |
| M | 508 | 409 | 74 | 74.5 | 120 | 545 | 540 | 780 | 45 | 570 | 390 | 956 | 30 | 61 |
| ML | 523 | 420 | 74 | 74.5 | 135 | 560 | 560 | 797 | 45 | 585 | 390 | 971 | 30 | 61 |
| L | 542 | 430 | 74 | 74.5 | 155 | 575 | 580 | 816 | 45 | 600 | 390 | 986 | 30 | 61 |
| XL | 566 | 443 | 74 | 74.5 | 180 | 595 | 610 | 841 | 45 | 620 | 390 | 1006 | 30 | 61 |
All measurements in millimetres unless marked (°) for angles.
