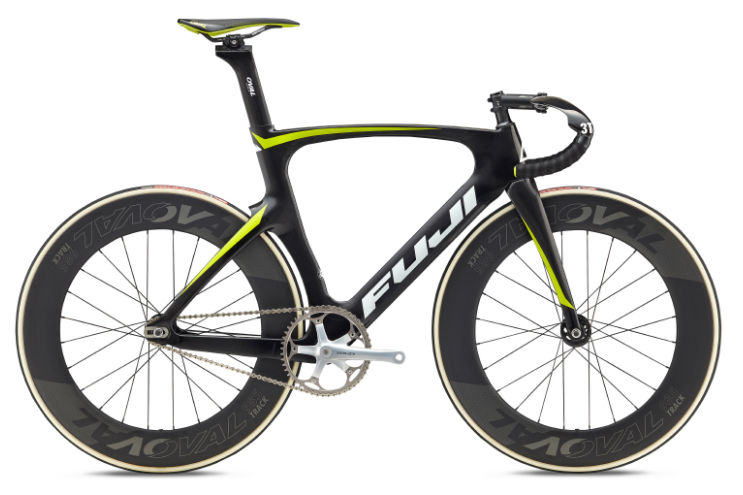

2014 Fuji Track Elite geometry
Full frame geometry for the 2014 Fuji Track Elite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 488 | 394 | 75 | 74 | 100 | 525 | 486 | 776 | 45 | 560 | 378 | 933 | 35 | 59 |
| XSS | 488 | 379 | 75 | 74 | 100 | 510 | 466 | 766 | 45 | 545 | 378 | 918 | 35 | 59 |
| M | 499 | 402 | 74 | 74.5 | 110 | 545 | 516 | 796 | 45 | 565 | 378 | 939 | 35 | 56 |
| ML | 514 | 413 | 74 | 74.5 | 125 | 560 | 536 | 814 | 45 | 580 | 378 | 954 | 35 | 56 |
| L | 528 | 424 | 74 | 74.5 | 140 | 575 | 542 | 828 | 45 | 595 | 378 | 969 | 35 | 56 |
| XL | 543 | 439 | 74 | 74.5 | 155 | 595 | 586 | 848 | 45 | 615 | 378 | 989 | 35 | 56 |
All measurements in millimetres unless marked (°) for angles.
