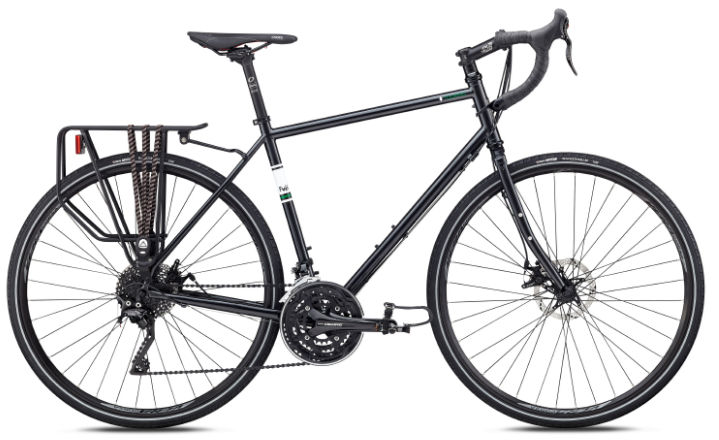

2017 Fuji Touring Disc geometry
Full frame geometry for the 2017 Fuji Touring Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/49 | 549 | 377 | 74 | 70 | 110 | 535 | 450 | 756 | 78 | 450 | 1048 | 52 | 61 |
| S/52 | 561 | 379 | 73.5 | 70.5 | 120 | 540 | 490 | 781 | 78 | 450 | 1048 | 52 | 61 |
| M/54 | 582 | 367 | 73 | 71 | 140 | 545 | 510 | 803 | 78 | 450 | 1048 | 52 | 62 |
| L/56 | 601 | 377 | 73.5 | 71 | 160 | 555 | 530 | 824 | 78 | 450 | 1055 | 52 | 62 |
| XL/58 | 620 | 386 | 73 | 71 | 180 | 575 | 550 | 838 | 78 | 450 | 1070 | 52 | 63 |
| XXL/61 | 638 | 395 | 73 | 71 | 200 | 590 | 580 | 862 | 78 | 450 | 1086 | 52 | 65 |
| XXXL/64 | 657 | 402 | 72.5 | 71 | 220 | 610 | 610 | 888 | 78 | 450 | 1100 | 52 | 66 |
All measurements in millimetres unless marked (°) for angles.
