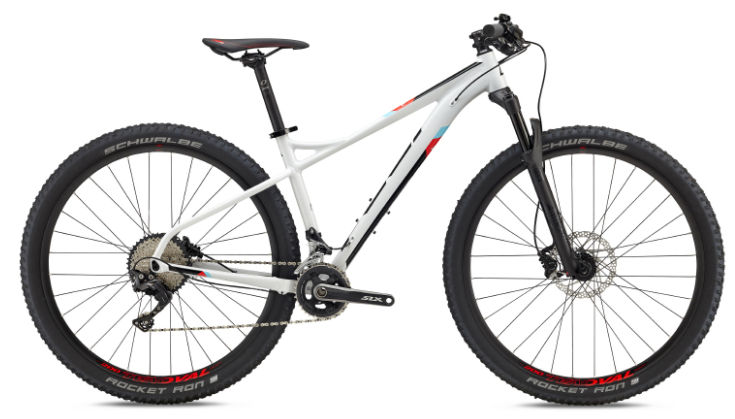

2017 Fuji Tahoe 29 MKII geometry
Full frame geometry for the 2017 Fuji Tahoe 29 MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M/17 | 620 | 416 | 73 | 69 | 100 | 605 | 430 | 702 | 60 | 435 | 1116 | 51 |
| S/15 | 620 | 391 | 73 | 69 | 100 | 580 | 430 | 704 | 60 | 435 | 1091 | 51 |
| L/19 | 629 | 438 | 73 | 69 | 110 | 630 | 465 | 700 | 60 | 435 | 1142 | 51 |
| XL/21 | 634 | 456 | 73 | 69 | 115 | 650 | 513 | 722 | 60 | 435 | 1162 | 51 |
| XXL/23 | 638 | 475 | 73 | 69 | 120 | 670 | 543 | 733 | 60 | 435 | 1182 | 51 |
All measurements in millimetres unless marked (°) for angles.
