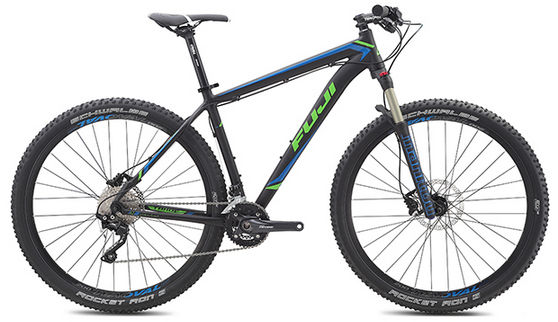

2015 Fuji Tahoe 29 MKI geometry
Full frame geometry for the 2015 Fuji Tahoe 29 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/15 | 638 | 378 | 73 | 71 | 120 | 580 | 381 | 791 | 55 | 631 | 437 | 1062 | 47 | 74 |
| SM/17 | 638 | 383 | 73 | 71 | 120 | 590 | 432 | 815 | 55 | 641 | 437 | 1072 | 47 | 74 |
| M/19 | 639 | 403 | 73 | 71 | 130 | 602 | 483 | 843 | 55 | 654 | 437 | 1085 | 47 | 74 |
| ML/21 | 648 | 425 | 73 | 71 | 130 | 630 | 533 | 864 | 55 | 681 | 437 | 1112 | 47 | 74 |
| L/23 | 657 | 443 | 73 | 71 | 140 | 650 | 584 | 893 | 55 | 702 | 437 | 1133 | 47 | 74 |
All measurements in millimetres unless marked (°) for angles.
