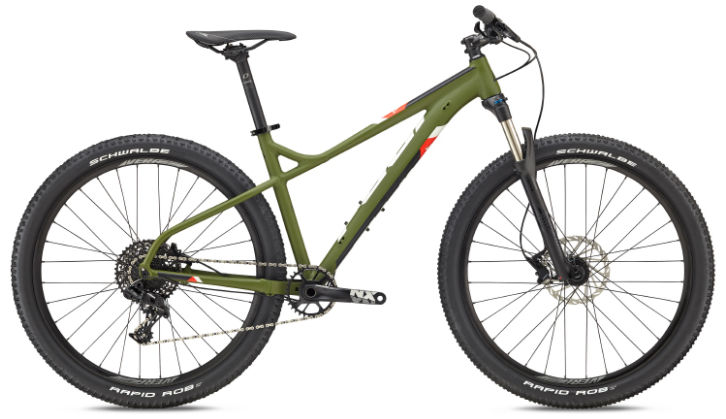

2017 Fuji Tahoe 27.5 MKII geometry
Full frame geometry for the 2017 Fuji Tahoe 27.5 MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M/17 | 589 | 425 | 73 | 69 | 100 | 605 | 430 | 661 | 45 | 420 | 1096 | 42 |
| S/15 | 589 | 400 | 73 | 69 | 100 | 580 | 394 | 663 | 45 | 420 | 1071 | 42 |
| L/19 | 598 | 447 | 73 | 69 | 110 | 630 | 465 | 679 | 45 | 420 | 1122 | 42 |
| XL/21 | 598 | 467 | 73 | 69 | 110 | 650 | 515 | 681 | 45 | 420 | 1142 | 42 |
| XXL/23 | 608 | 484 | 73 | 69 | 120 | 670 | 540 | 691 | 45 | 420 | 1163 | 42 |
All measurements in millimetres unless marked (°) for angles.
