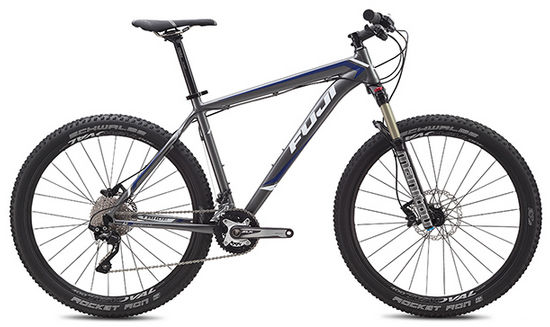

2015 Fuji Tahoe 27.5 MKI geometry
Full frame geometry for the 2015 Fuji Tahoe 27.5 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/15 | 585 | 352 | 73 | 70 | 100 | 531 | 330 | 733 | 44 | 595 | 430 | 1021 | 42 | 77 |
| SM/17 | 594 | 398 | 73 | 70 | 110 | 580 | 432 | 791 | 44 | 645 | 430 | 1071 | 42 | 77 |
| M/19 | 604 | 419 | 73 | 70 | 120 | 604 | 483 | 821 | 44 | 669 | 430 | 1096 | 42 | 77 |
| ML/21 | 613 | 443 | 73 | 70 | 130 | 630 | 533 | 849 | 44 | 696 | 430 | 1122 | 42 | 77 |
| L/23 | 623 | 460 | 73 | 70 | 140 | 650 | 584 | 877 | 44 | 716 | 430 | 1143 | 42 | 77 |
All measurements in millimetres unless marked (°) for angles.
