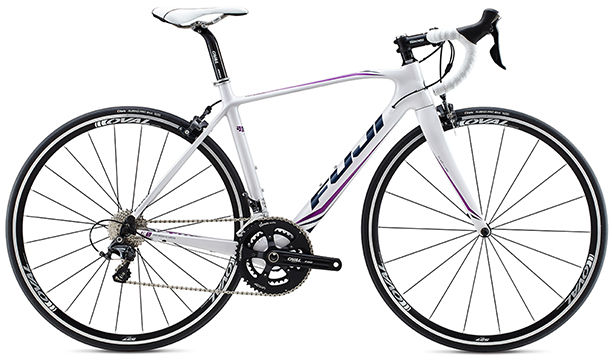

2013 Fuji Supreme geometry
Full frame geometry for the 2013 Fuji Supreme, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 467 | 371 | 75 | 70.5 | 115 | 510 | 470 | 734 | 73 | 578 | 405 | 971 | 50 | 65 |
| XXS | 506 | 364 | 75 | 70.5 | 105 | 500 | 440 | 713 | 73 | 575 | 405 | 969 | 50 | 65 |
| S | 525 | 369 | 74 | 70.5 | 125 | 520 | 500 | 752 | 70 | 579 | 405 | 973 | 50 | 65 |
| SM | 546 | 373 | 73.5 | 70.5 | 145 | 535 | 530 | 775 | 70 | 585 | 405 | 979 | 50 | 65 |
| M | 570 | 381 | 73.5 | 70.5 | 165 | 550 | 560 | 801 | 70 | 588 | 405 | 983 | 48 | 67 |
All measurements in millimetres unless marked (°) for angles.
