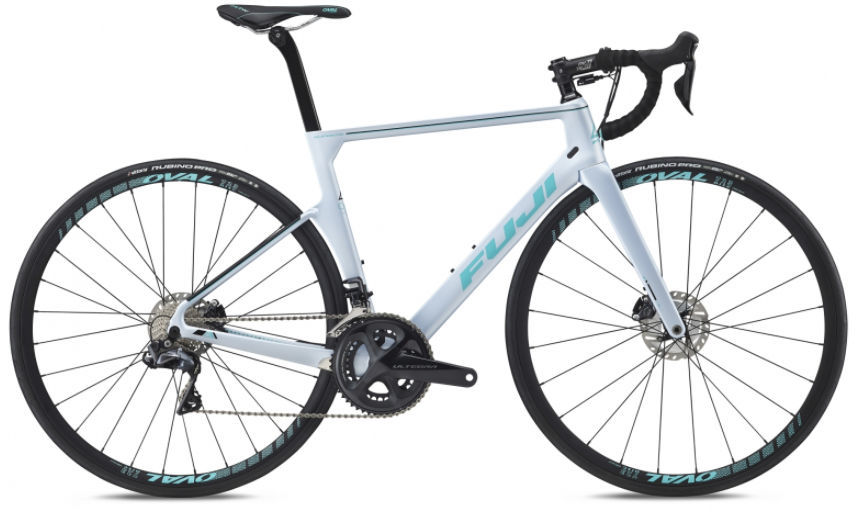

2018 Fuji Supreme Disc geometry
Full frame geometry for the 2018 Fuji Supreme Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/44 | 484 | 365 | 75.5 | 70.5 | 96 | 490 | 420 | 709 | 73 | 410 | 969 | 52 | 65 |
| XS/47 | 505 | 372 | 75 | 71.5 | 115 | 507 | 450 | 734 | 73 | 410 | 975 | 52 | 59 |
| S/50 | 521 | 377 | 74.5 | 71.5 | 135 | 522 | 480 | 759 | 70 | 410 | 987 | 52 | 59 |
| M/53 | 538 | 381 | 74 | 72 | 151 | 535 | 510 | 781 | 70 | 410 | 992 | 52 | 56 |
| L/56 | 562 | 388 | 73.5 | 73 | 172 | 555 | 540 | 810 | 68 | 410 | 989 | 43 | 59 |
All measurements in millimetres unless marked (°) for angles.
