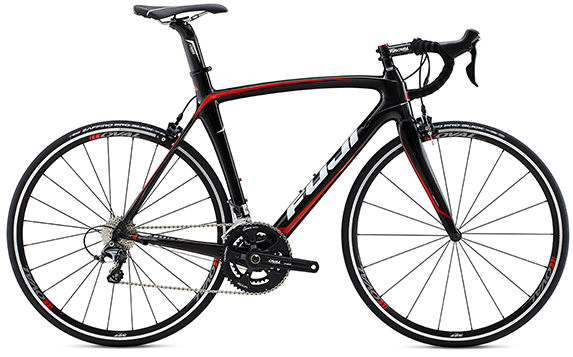

2012 Fuji SST geometry
Full frame geometry for the 2012 Fuji SST, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 513 | 380 | 75 | 72 | 110 | 517 | 521 | 752 | 68 | 542 | 410 | 942 | 43 | 63 |
| SM | 523 | 375 | 73.5 | 72 | 120 | 530 | 536 | 770 | 68 | 572 | 410 | 972 | 43 | 63 |
| M | 535 | 386 | 73.5 | 73 | 130 | 545 | 547 | 777 | 68 | 578 | 410 | 979 | 43 | 57 |
| ML | 555 | 396 | 73.5 | 73 | 150 | 560 | 587 | 796 | 68 | 593 | 410 | 994 | 43 | 57 |
| L | 574 | 405 | 73.5 | 73 | 170 | 575 | 605 | 819 | 68 | 608 | 410 | 1009 | 43 | 57 |
| L/XL | 580 | 418 | 73.5 | 73 | 180 | 590 | 605 | 846 | 68 | 633 | 410 | 1034 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
