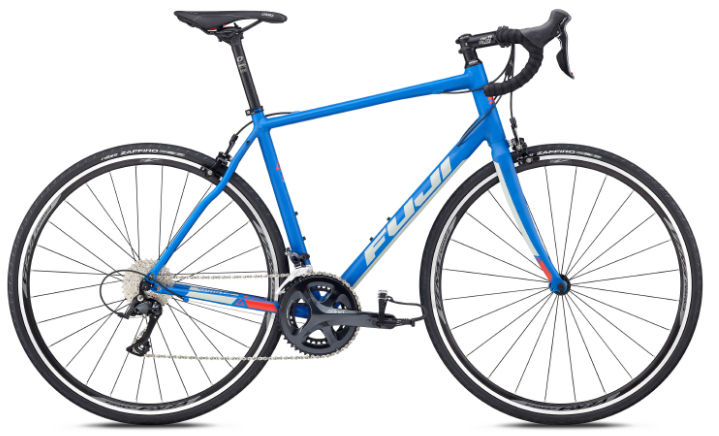

2017 Fuji Sportif MKII geometry
Full frame geometry for the 2017 Fuji Sportif MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/46 | 507 | 389 | 75 | 71 | 100 | 505 | 420 | 718 | 69 | 418 | 986 | 52 | 63 |
| XS/49 | 532 | 382 | 74.5 | 71.5 | 125 | 515 | 450 | 747 | 69 | 418 | 988 | 52 | 60 |
| S/52 | 556 | 378 | 73.8 | 71.5 | 150 | 530 | 480 | 774 | 69 | 418 | 997 | 52 | 60 |
| M/54 | 581 | 383 | 73.5 | 73 | 170 | 545 | 500 | 796 | 69 | 418 | 986 | 43 | 60 |
| L/56 | 600 | 377 | 73 | 73 | 190 | 560 | 520 | 817 | 69 | 418 | 996 | 43 | 60 |
| XL/58 | 624 | 389 | 73 | 73 | 215 | 580 | 540 | 838 | 69 | 418 | 1018 | 43 | 60 |
| XXL/61 | 643 | 404 | 73 | 73 | 235 | 600 | 570 | 860 | 69 | 418 | 1036 | 43 | 60 |
All measurements in millimetres unless marked (°) for angles.
