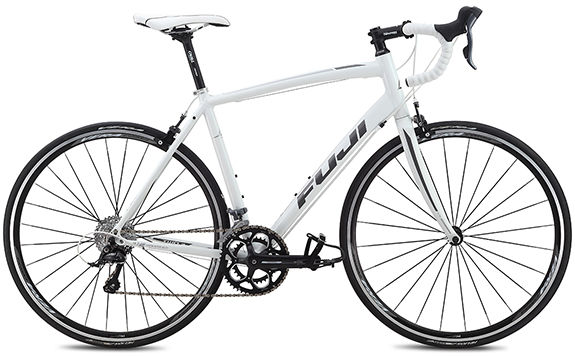

2015 Fuji Sportif MKI geometry
Full frame geometry for the 2015 Fuji Sportif MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 445 | 349 | 74.5 | 71 | 105 | 485 | 350 | 623 | 35 | 517 | 395 | 909 | 45 | 59 |
| S | 528 | 374 | 75.3 | 71.5 | 125 | 515 | 455 | 742 | 68 | 587 | 415 | 992 | 52 | 57 |
| XS | 529 | 358 | 75.5 | 70.5 | 100 | 503 | 400 | 718 | 69 | 576 | 415 | 981 | 52 | 63 |
| SM | 551 | 380 | 75 | 71.5 | 150 | 530 | 485 | 769 | 68 | 600 | 415 | 1006 | 52 | 57 |
| M | 578 | 385 | 73.5 | 73 | 170 | 544 | 505 | 791 | 68 | 590 | 415 | 995 | 43 | 57 |
| ML | 598 | 375 | 73 | 73 | 190 | 558 | 525 | 812 | 68 | 587 | 415 | 992 | 43 | 57 |
| L | 621 | 388 | 73 | 73 | 215 | 578 | 545 | 833 | 68 | 605 | 415 | 1011 | 43 | 57 |
| L/XL | 641 | 402 | 73 | 73 | 235 | 598 | 575 | 857 | 68 | 626 | 415 | 1032 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
