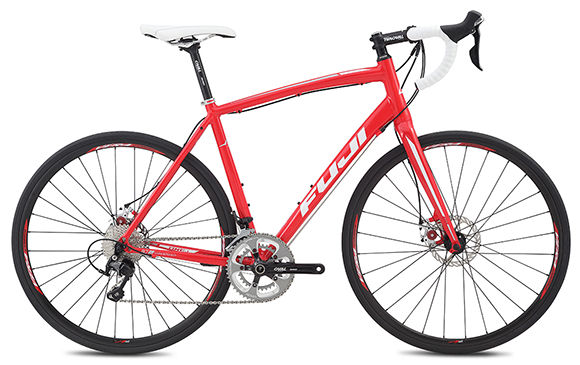

2015 Fuji Sportif Disc MKI geometry
Full frame geometry for the 2015 Fuji Sportif Disc MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 547 | 368 | 75.3 | 71.5 | 125 | 515 | 455 | 753 | 68 | 586 | 415 | 991 | 52 | 57 |
| SM | 571 | 375 | 75 | 71.5 | 150 | 530 | 485 | 780 | 68 | 599 | 415 | 1005 | 52 | 57 |
| M | 597 | 377 | 73.5 | 73 | 170 | 544 | 505 | 803 | 68 | 591 | 415 | 996 | 43 | 57 |
| ML | 616 | 369 | 73 | 73 | 190 | 558 | 525 | 824 | 68 | 589 | 415 | 994 | 43 | 57 |
| L | 640 | 382 | 73 | 73 | 215 | 578 | 545 | 845 | 68 | 608 | 415 | 1014 | 43 | 57 |
| L/XL | 659 | 396 | 73 | 73 | 235 | 598 | 575 | 869 | 68 | 628 | 415 | 1034 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
