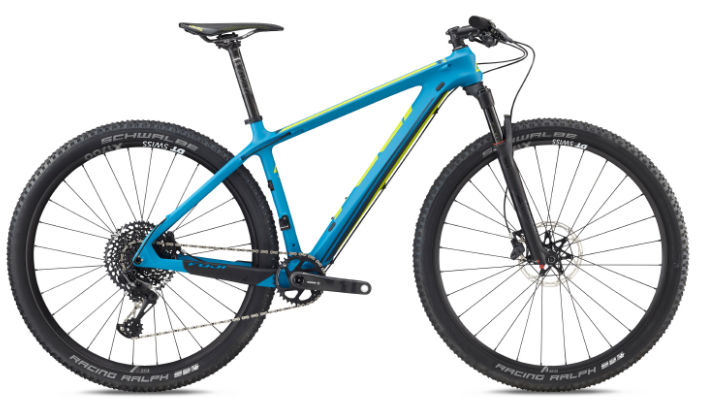

2015 Fuji SLM 29 geometry
Full frame geometry for the 2015 Fuji SLM 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/15 | 597 | 414 | 73 | 70 | 90 | 587 | 394 | 777 | 53 | 663 | 430 | 1088 | 47 | 80 |
| M/17.5 | 617 | 424 | 73 | 71 | 100 | 604 | 445 | 804 | 53 | 669 | 430 | 1093 | 47 | 74 |
| XL/21 | 630 | 459 | 73 | 71 | 120 | 642 | 533 | 853 | 53 | 707 | 430 | 1132 | 47 | 74 |
| L/19 | 635 | 443 | 73 | 71 | 110 | 623 | 483 | 816 | 53 | 688 | 430 | 1113 | 47 | 74 |
All measurements in millimetres unless marked (°) for angles.
