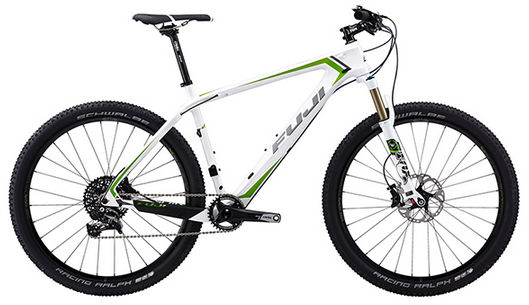

2015 Fuji SLM 27.5 geometry
Full frame geometry for the 2015 Fuji SLM 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/15 | 593 | 422 | 73 | 70 | 100 | 572 | 381 | 756 | 44 | 639 | 425 | 1060 | 44 | 75 |
| SM/17 | 593 | 423 | 73 | 70 | 110 | 604 | 432 | 789 | 44 | 671 | 425 | 1093 | 44 | 75 |
| M/19 | 602 | 439 | 73 | 70 | 120 | 623 | 483 | 807 | 44 | 690 | 425 | 1112 | 44 | 75 |
| ML/21 | 612 | 455 | 73 | 70 | 130 | 642 | 534 | 836 | 44 | 710 | 425 | 1131 | 44 | 75 |
All measurements in millimetres unless marked (°) for angles.
