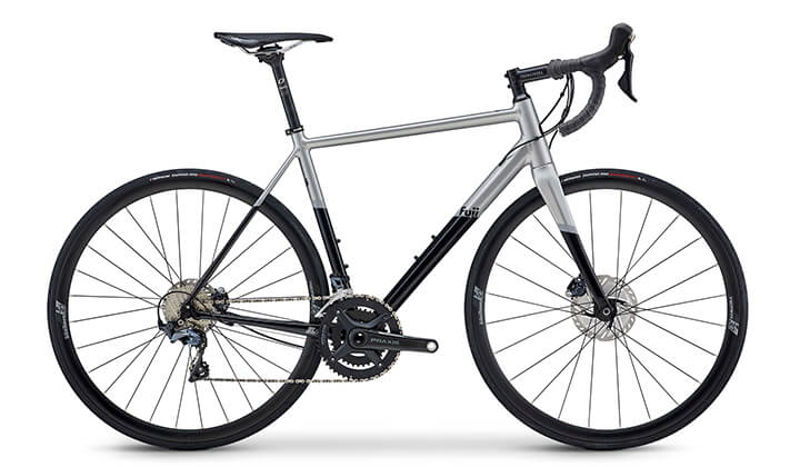

2022 Fuji SL-A geometry
Full frame geometry for the 2022 Fuji SL-A, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS 46cm | 498 | 372 | 75 | 71 | 100 | 505 | 420 | 704 | 70 | 410 | 978 | 52 | 61.4 |
| XS 49cm | 500 | 376 | 74.5 | 71.5 | 100 | 515 | 450 | 720 | 70 | 410 | 979 | 52 | 58.3 |
| S 52cm | 521 | 378 | 73.8 | 72 | 120 | 530 | 480 | 745 | 70 | 410 | 983 | 52 | 55.1 |
| M 54cm | 547 | 384 | 73.5 | 73 | 140 | 545 | 500 | 769 | 68 | 410 | 979 | 43 | 58.4 |
| L 56cm | 563 | 388 | 73 | 73 | 160 | 560 | 520 | 787 | 68 | 410 | 989 | 43 | 58.4 |
| XL 58cm | 580 | 403 | 73 | 73 | 180 | 580 | 540 | 810 | 66 | 410 | 1010 | 43 | 58.4 |
| XXL 61cm | 603 | 417 | 73 | 73 | 200 | 600 | 570 | 835 | 66 | 410 | 1029 | 43 | 58.4 |
| XXXL 64cm | 619 | 426 | 73 | 73 | 220 | 615 | 600 | 858 | 66 | 410 | 1044 | 43 | 58.4 |
All measurements in millimetres unless marked (°) for angles.
