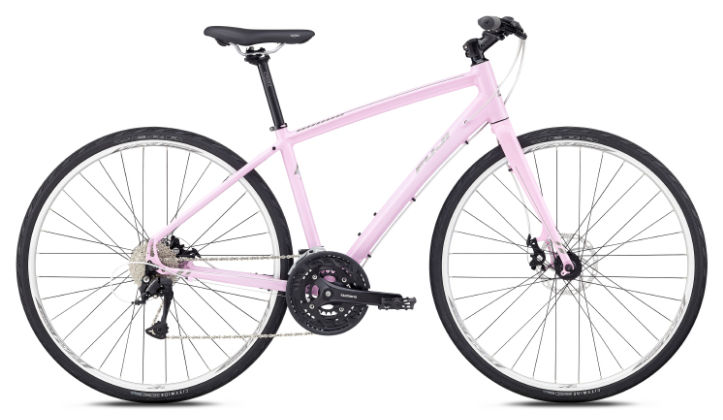

2017 Fuji Silhouette geometry
Full frame geometry for the 2017 Fuji Silhouette, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/15 | 476 | 385 | 75 | 70.5 | 130 | 520 | 380 | 765 | 65 | 440 | 1047 | 45 |
| M/17 | 507 | 376 | 74 | 70.5 | 150 | 520 | 432 | 797 | 65 | 440 | 1047 | 45 |
| L/19 | 511 | 387 | 74 | 70.5 | 160 | 550 | 483 | 801 | 65 | 440 | 1060 | 45 |
All measurements in millimetres unless marked (°) for angles.
