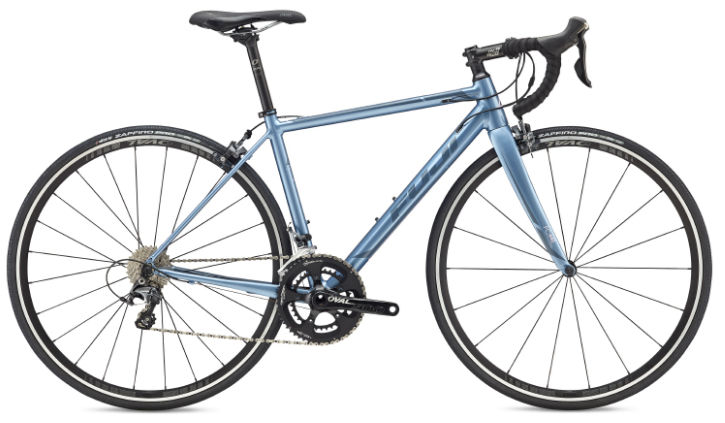

2017 Fuji Roubaix Womens geometry
Full frame geometry for the 2017 Fuji Roubaix Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/44 | 496 | 371 | 75.5 | 71 | 95 | 500 | 400 | 694 | 73 | 410 | 975 | 52 | 62 |
| XS/47 | 512 | 373 | 75 | 71.5 | 110 | 510 | 430 | 717 | 73 | 410 | 977 | 52 | 59 |
| S/50 | 519 | 381 | 74.5 | 71.5 | 121 | 525 | 460 | 737 | 70 | 410 | 990 | 52 | 59 |
| M/53 | 541 | 379 | 74 | 72 | 142 | 535 | 490 | 762 | 70 | 410 | 992 | 52 | 56 |
| L/56 | 564 | 387 | 73.5 | 73 | 162 | 555 | 520 | 790 | 68 | 410 | 988 | 43 | 59 |
All measurements in millimetres unless marked (°) for angles.
