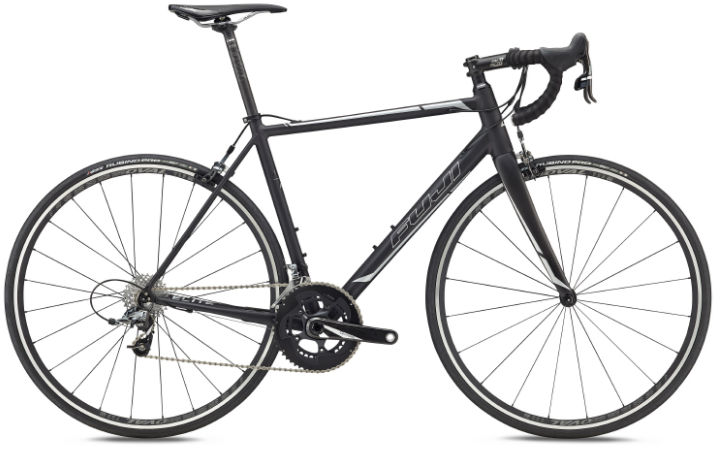

2017 Fuji Roubaix MKII geometry
Full frame geometry for the 2017 Fuji Roubaix MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/46 | 498 | 372 | 75 | 71 | 100 | 505 | 420 | 707 | 70 | 405 | 977 | 52 | 61 |
| XS/49 | 499 | 377 | 74.5 | 71.5 | 100 | 515 | 450 | 721 | 70 | 405 | 978 | 52 | 58 |
| S/52 | 520 | 379 | 73.8 | 72 | 120 | 530 | 480 | 745 | 70 | 405 | 987 | 52 | 55 |
| M/54 | 543 | 384 | 73.5 | 73 | 140 | 545 | 500 | 768 | 68 | 405 | 978 | 43 | 58 |
| L/56 | 562 | 388 | 73 | 73 | 160 | 560 | 520 | 786 | 68 | 405 | 989 | 43 | 58 |
| XL/58 | 579 | 403 | 73 | 73 | 180 | 580 | 540 | 807 | 66 | 405 | 1009 | 43 | 58 |
| XXL/61 | 599 | 417 | 73 | 73 | 200 | 600 | 570 | 834 | 66 | 405 | 1029 | 43 | 58 |
| XXXL/64 | 618 | 426 | 73 | 73 | 220 | 615 | 600 | 858 | 66 | 405 | 1044 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
