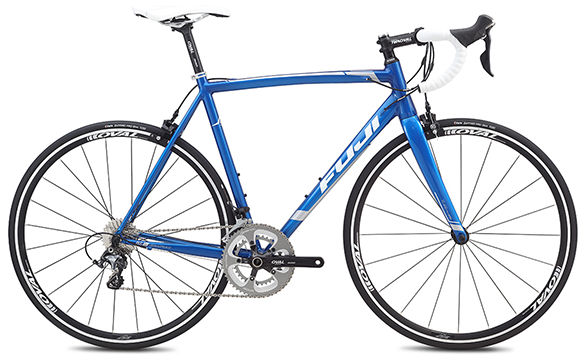

2015 Fuji Roubaix MKI geometry
Full frame geometry for the 2015 Fuji Roubaix MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XSS | 503 | 373 | 75.5 | 70.8 | 110 | 505 | 460 | 728 | 68 | 582 | 405 | 977 | 52 | 62 |
| S | 515 | 377 | 75.2 | 72.5 | 120 | 515 | 490 | 750 | 68 | 584 | 405 | 979 | 52 | 51 |
| SM | 524 | 387 | 75 | 71.5 | 130 | 530 | 520 | 770 | 68 | 597 | 405 | 992 | 52 | 57 |
| M | 540 | 385 | 73.5 | 73 | 140 | 545 | 540 | 786 | 68 | 580 | 405 | 975 | 43 | 57 |
| ML | 560 | 389 | 73 | 73 | 160 | 560 | 560 | 807 | 68 | 586 | 405 | 981 | 43 | 57 |
| L | 579 | 403 | 73 | 73 | 180 | 580 | 580 | 826 | 68 | 610 | 405 | 1005 | 43 | 57 |
| XL | 598 | 417 | 73 | 73 | 200 | 600 | 610 | 851 | 68 | 629 | 405 | 1025 | 43 | 57 |
| XXL | 617 | 427 | 73 | 73 | 220 | 615 | 610 | 875 | 68 | 644 | 405 | 1040 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
