2017 Fuji Roubaix Disc geometry

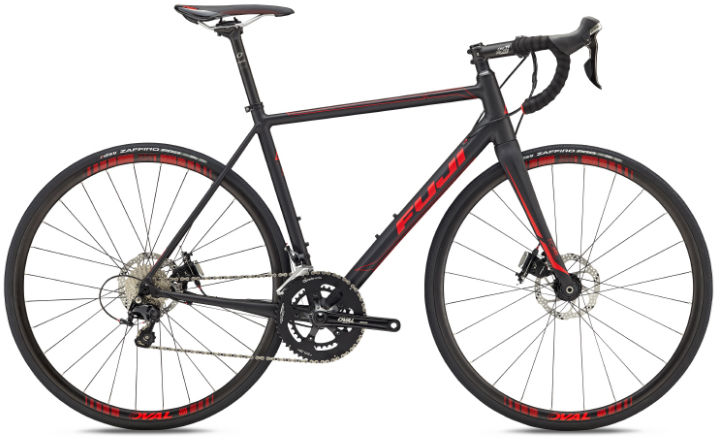

Name: 2017 Fuji Roubaix Disc
Brand: Fuji

Full frame geometry for the 2017 Fuji Roubaix Disc, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
XXS/46	498	372	75	71	100	505	420	704	70	410	978	52	61
XS/49	500	376	74.5	71.5	100	515	450	720	70	410	979	52	58
S/52	521	378	73.8	72	120	530	480	745	70	410	983	52	55
M/54	547	384	73.5	73	140	545	500	769	68	410	979	43	58
L/56	563	388	73	73	160	560	520	787	68	410	989	43	58
XL/58	580	403	73	73	180	580	540	810	66	410	1010	43	58
XXL/61	603	417	73	73	200	600	570	835	66	410	1029	43	58
XXXL/64	619	426	73	73	220	615	600	858	66	410	1044	43	58

All measurements in millimetres unless marked (°) for angles.
