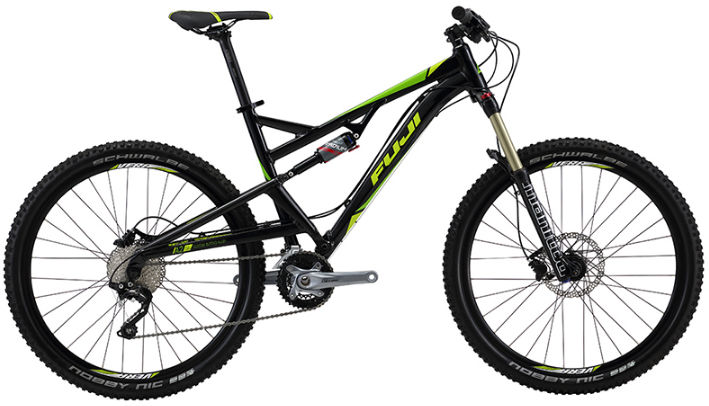

2016 Fuji Reveal 27.5 geometry
Full frame geometry for the 2016 Fuji Reveal 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/15 | 584 | 393 | 73 | 68 | 100 | 572 | 381 | 821 | 10 | 782 | 445 | 1117 | 44 |
| M/17 | 594 | 422 | 73 | 68 | 110 | 604 | 432 | 853 | 10 | 782 | 445 | 1150 | 44 |
| L/19 | 603 | 439 | 73 | 68 | 120 | 623 | 483 | 884 | 10 | 782 | 445 | 1170 | 44 |
| XL/21 | 612 | 455 | 73 | 68 | 130 | 642 | 533 | 915 | 10 | 782 | 445 | 1190 | 44 |
All measurements in millimetres unless marked (°) for angles.
