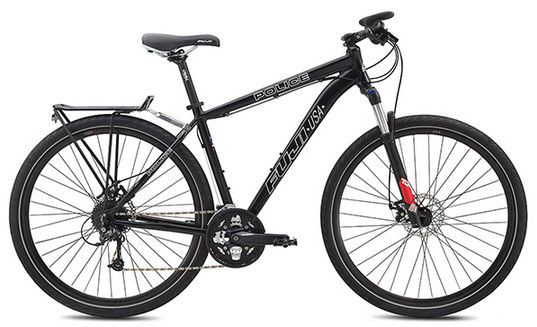

2015 Fuji Police 29 MKI geometry
Full frame geometry for the 2015 Fuji Police 29 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/15 | 640 | 373 | 73 | 71 | 120 | 575 | 381 | 792 | 60 | 624 | 445 | 1062 | 46 | 75 |
| M/19 | 649 | 405 | 73 | 71 | 130 | 610 | 483 | 842 | 60 | 659 | 445 | 1097 | 46 | 75 |
| ML/21 | 649 | 420 | 73 | 71 | 130 | 625 | 533 | 867 | 60 | 674 | 445 | 1112 | 46 | 75 |
| SM/17 | 649 | 381 | 73 | 71 | 130 | 590 | 432 | 821 | 60 | 639 | 445 | 1077 | 46 | 75 |
| L/23 | 668 | 428 | 73 | 71 | 150 | 640 | 584 | 900 | 60 | 689 | 445 | 1127 | 46 | 75 |
All measurements in millimetres unless marked (°) for angles.
