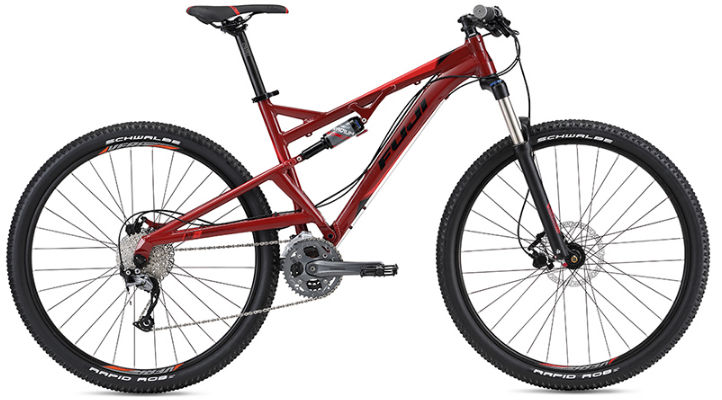

2016 Fuji Outland 29 geometry
Full frame geometry for the 2016 Fuji Outland 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M/17 | 607 | 418 | 73.5 | 69 | 100 | 598 | 432 | 840 | 50 | 784 | 458 | 1145 | 47 |
| S/15 | 607 | 386 | 73.5 | 69 | 100 | 566 | 381 | 814 | 50 | 784 | 458 | 1113 | 47 |
| L/19 | 616 | 434 | 73.5 | 69 | 110 | 617 | 483 | 871 | 50 | 784 | 458 | 1165 | 47 |
| XL/21 | 626 | 450 | 73.5 | 69 | 120 | 636 | 533 | 903 | 50 | 784 | 458 | 1185 | 47 |
All measurements in millimetres unless marked (°) for angles.
