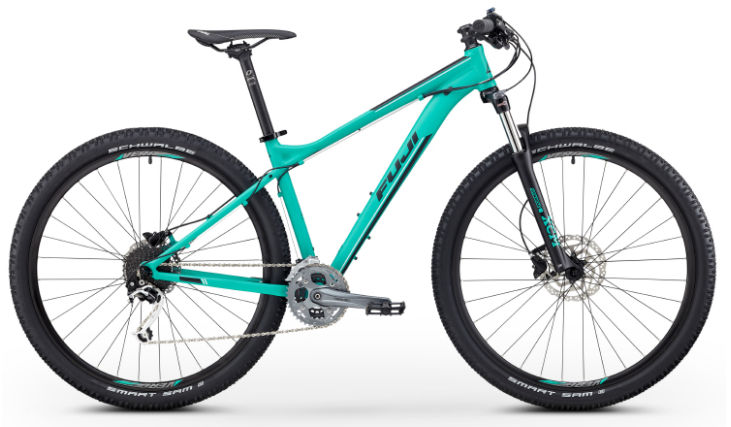

2017 Fuji Nevada 29 MKII geometry
Full frame geometry for the 2017 Fuji Nevada 29 MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/15 | 625 | 389 | 73 | 70 | 100 | 580 | 380 | 653 | 60 | 435 | 1074 | 46 |
| M/17 | 634 | 406 | 73 | 70 | 110 | 600 | 430 | 698 | 60 | 435 | 1095 | 46 |
| L/19 | 639 | 430 | 73 | 70 | 115 | 625 | 483 | 727 | 60 | 435 | 1120 | 46 |
| XL/21 | 644 | 443 | 73 | 70 | 120 | 640 | 530 | 758 | 60 | 435 | 1136 | 46 |
| XXL/23 | 653 | 460 | 73 | 70 | 130 | 660 | 580 | 787 | 60 | 435 | 1156 | 46 |
All measurements in millimetres unless marked (°) for angles.
