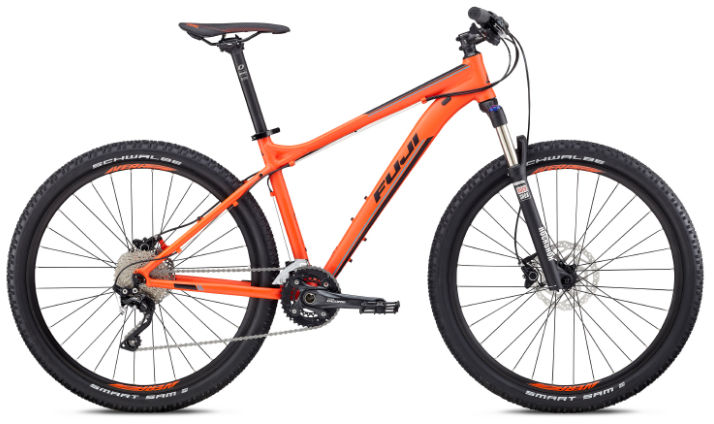

2017 Fuji Nevada 27.5 MKII geometry
Full frame geometry for the 2017 Fuji Nevada 27.5 MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/13 | 589 | 370 | 73 | 70 | 95 | 550 | 330 | 602 | 45 | 430 | 1040 | 42 |
| L/19 | 617 | 432 | 73 | 70 | 125 | 620 | 483 | 715 | 45 | 430 | 1112 | 42 |
| M/17 | 617 | 404 | 73 | 70 | 115 | 590 | 430 | 690 | 45 | 430 | 1082 | 42 |
| S/15 | 617 | 387 | 73 | 70 | 105 | 570 | 350 | 621 | 45 | 430 | 1061 | 42 |
| XL/21 | 617 | 449 | 73 | 70 | 135 | 640 | 532 | 752 | 45 | 430 | 1133 | 42 |
| XXL/23 | 617 | 466 | 73 | 70 | 145 | 660 | 582 | 780 | 45 | 430 | 1153 | 42 |
All measurements in millimetres unless marked (°) for angles.
