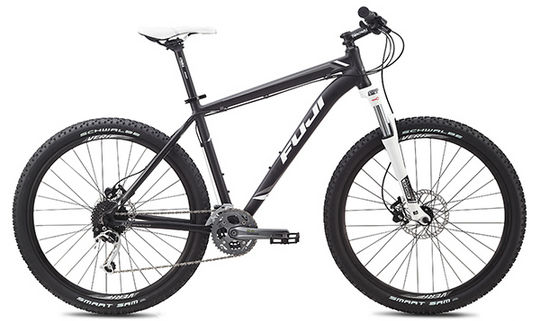

2015 Fuji Nevada 27.5 MKI geometry
Full frame geometry for the 2015 Fuji Nevada 27.5 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/13 | 595 | 354 | 73 | 70.5 | 100 | 535 | 330 | 751 | 44 | 595 | 435 | 1026 | 42 | 74 |
| S/15 | 604 | 361 | 73 | 70.5 | 110 | 545 | 381 | 773 | 44 | 606 | 435 | 1037 | 42 | 74 |
| SM/17 | 618 | 391 | 73 | 70.5 | 125 | 580 | 432 | 803 | 44 | 641 | 435 | 1072 | 42 | 74 |
| M/19 | 628 | 409 | 73 | 70.5 | 135 | 600 | 483 | 833 | 44 | 661 | 435 | 1093 | 42 | 74 |
| ML/21 | 642 | 434 | 73 | 70.5 | 150 | 630 | 533 | 869 | 44 | 692 | 435 | 1123 | 42 | 74 |
| L/23 | 651 | 451 | 73 | 70.5 | 160 | 650 | 584 | 892 | 44 | 712 | 435 | 1144 | 42 | 74 |
All measurements in millimetres unless marked (°) for angles.
