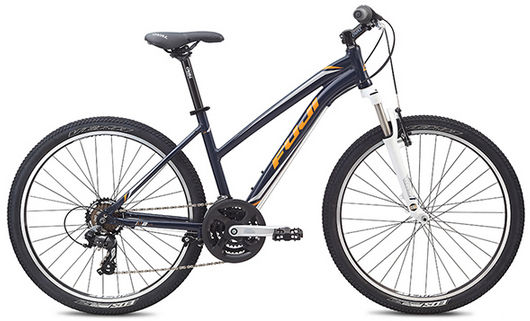

2015 Fuji Lea geometry
Full frame geometry for the 2015 Fuji Lea, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/13 | 589 | 346 | 73 | 70 | 120 | 525 | 330 | 694 | 34 | 589 | 425 | 1011 | 38 | 79 |
| SM/16 | 598 | 378 | 73 | 70 | 130 | 560 | 406 | 721 | 34 | 624 | 425 | 1047 | 38 | 79 |
| M/19 | 607 | 395 | 73 | 70 | 140 | 580 | 482 | 720 | 34 | 645 | 425 | 1068 | 38 | 79 |
All measurements in millimetres unless marked (°) for angles.
