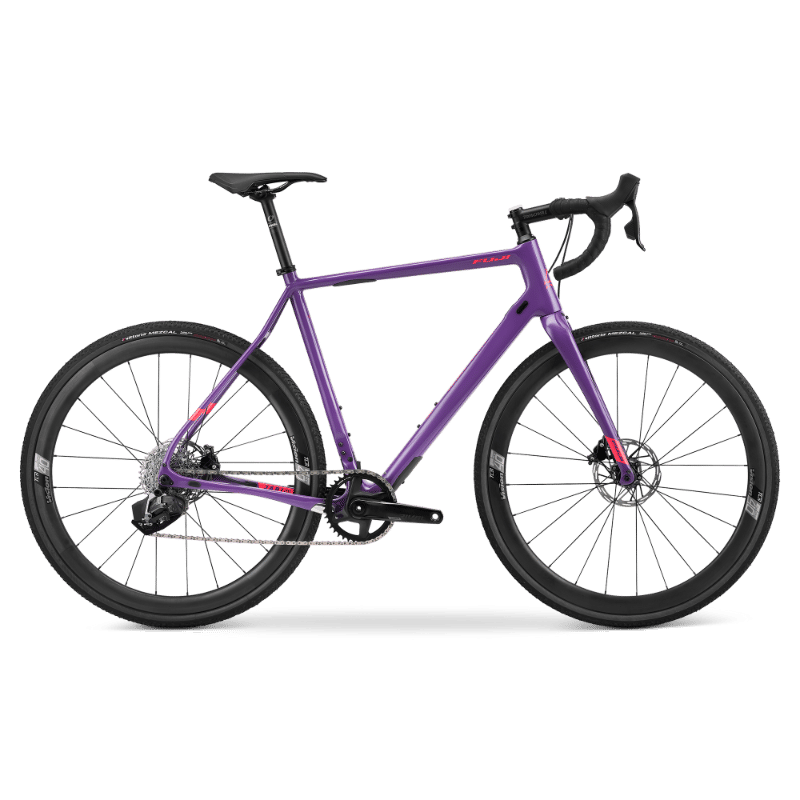

2022 Fuji Jari Carbon CX geometry
Full frame geometry for the 2022 Fuji Jari Carbon CX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 535 | 372 | 75 | 71 | 110 | 520 | 490 | 766 | 66 | 425 | 1009 | 48 | 70 |
| S | 554 | 375 | 74 | 71.5 | 130 | 535 | 520 | 794 | 64 | 425 | 1011 | 48 | 66 |
| M | 566 | 378 | 73.5 | 72 | 140 | 545 | 540 | 807 | 64 | 425 | 1011 | 48 | 63 |
| L | 580 | 385 | 73 | 72 | 160 | 560 | 560 | 825 | 64 | 425 | 1021 | 48 | 63 |
| XL | 602 | 390 | 73 | 72 | 180 | 575 | 580 | 844 | 62 | 425 | 1037 | 48 | 63 |
| XXL | 621 | 405 | 73 | 72 | 200 | 590 | 610 | 868 | 62 | 425 | 1058 | 48 | 63 |
All measurements in millimetres unless marked (°) for angles.
