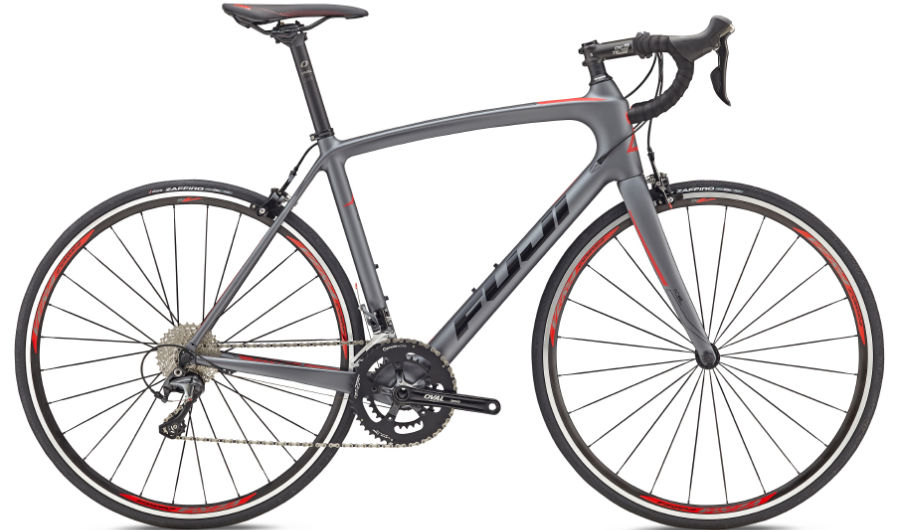

2012 Fuji Gran Fondo Classico geometry
Full frame geometry for the 2012 Fuji Gran Fondo Classico, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/47 | 519 | 386 | 75 | 71 | 125 | 515 | 441 | 726 | 69 | 415 | 992 | 52 | 61 |
| S/50 | 543 | 394 | 75 | 71 | 150 | 530 | 470 | 757 | 69 | 415 | 1009 | 52 | 61 |
| M/53 | 561 | 382 | 73 | 71.5 | 170 | 545 | 500 | 771 | 69 | 415 | 1001 | 52 | 58 |
| L/55 | 591 | 378 | 73 | 73 | 190 | 560 | 520 | 803 | 69 | 415 | 993 | 43 | 58 |
| XL/58 | 612 | 403 | 73 | 73 | 210 | 580 | 550 | 824 | 69 | 415 | 1013 | 43 | 58 |
| XXL/61 | 635 | 417 | 73 | 73 | 235 | 600 | 580 | 851 | 69 | 415 | 1033 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
