2015 Fuji · RW

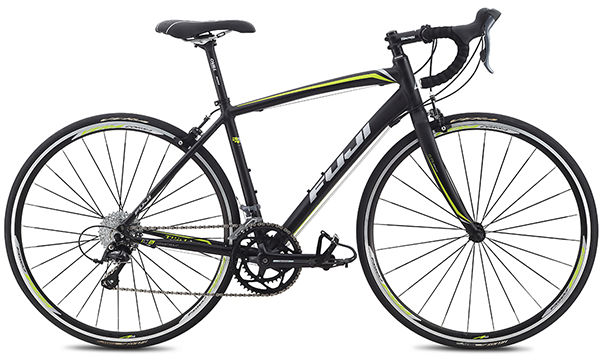

2015 Fuji Finest MKII geometry
Full frame geometry for the 2015 Fuji Finest MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/35 | 445 | 349 | 74.5 | 71 | 105 | 485 | 350 | 623 | 35 | 517 | 395 | 909 | 45 | 59 |
| XS/44 | 529 | 358 | 75.5 | 70.5 | 100 | 503 | 400 | 718 | 69 | 576 | 415 | 981 | 52 | 63 |
| XSS/47 | 529 | 368 | 75 | 71 | 125 | 510 | 430 | 729 | 69 | 586 | 415 | 991 | 52 | 60 |
| S/50 | 554 | 376 | 75 | 71.5 | 150 | 525 | 460 | 756 | 69 | 595 | 415 | 1000 | 52 | 57 |
| SM/53 | 578 | 369 | 74 | 72 | 170 | 535 | 490 | 767 | 69 | 584 | 415 | 989 | 43 | 63 |
| M/56 | 600 | 377 | 73.5 | 73 | 190 | 555 | 540 | 810 | 69 | 589 | 415 | 994 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
