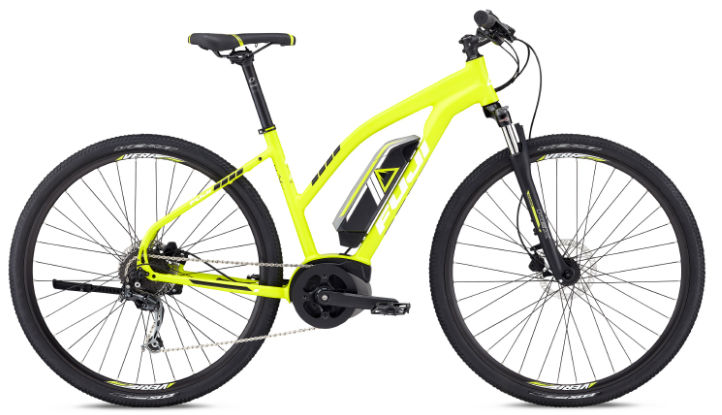

2017 Fuji E-Traverse ST geometry
Full frame geometry for the 2017 Fuji E-Traverse ST, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/16 | 594 | 384 | 72.5 | 70 | 110 | 571 | 400 | 760 | 60 | 628 | 470 | 1091 | 44 |
| M/18 | 605 | 388 | 71.5 | 70.5 | 120 | 590 | 460 | 771 | 60 | 630 | 470 | 1093 | 44 |
| L/20 | 629 | 400 | 71.5 | 70.5 | 145 | 610 | 508 | 771 | 60 | 651 | 470 | 1114 | 44 |
| XL/21.5 | 652 | 402 | 71.5 | 70.5 | 170 | 620 | 540 | 775 | 60 | 661 | 470 | 1124 | 44 |
All measurements in millimetres unless marked (°) for angles.
