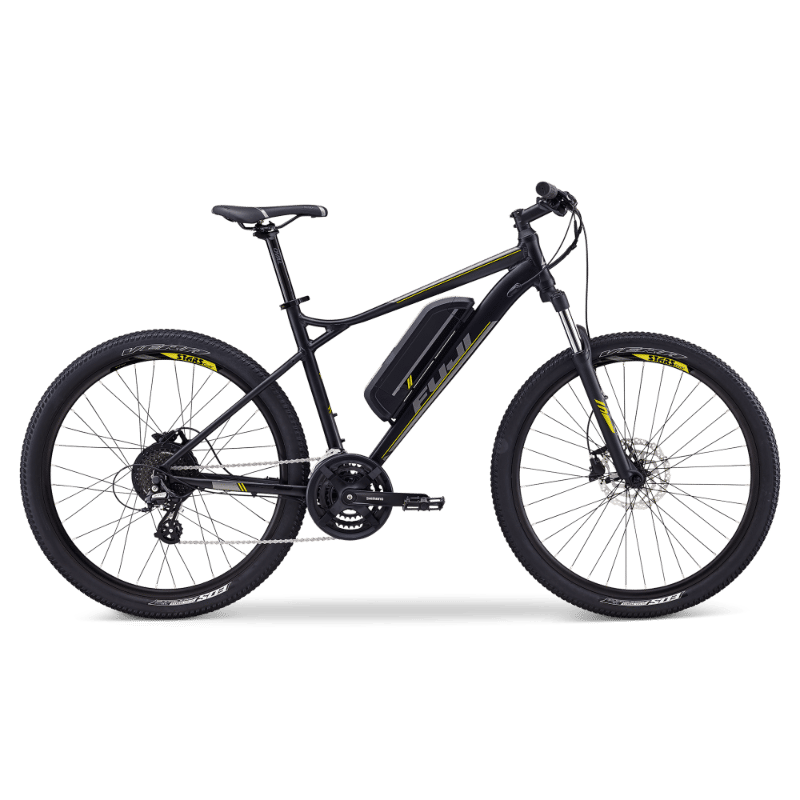

2019 Fuji E-Nevada 27.5 geometry
Full frame geometry for the 2019 Fuji E-Nevada 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17" | 590 | 405 | 73 | 70 | 115 | 590 | 430 | 678 | 45 | 450 | 1102 | 42 |
| 15" | 603 | 382 | 73 | 70 | 120 | 570 | 386 | 659 | 45 | 450 | 1083 | 42 |
| 21" | 616 | 449 | 73 | 70 | 135 | 640 | 532 | 768 | 45 | 450 | 1153 | 42 |
| 19" | 618 | 432 | 73 | 70 | 125 | 620 | 483 | 729 | 45 | 450 | 1132 | 42 |
All measurements in millimetres unless marked (°) for angles.
