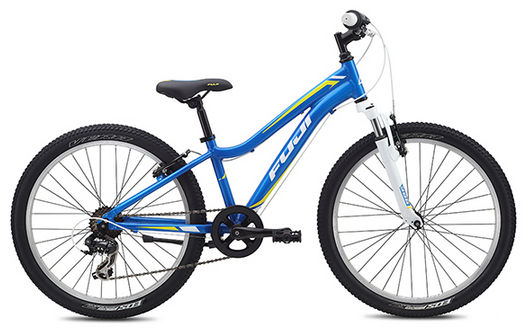

2015 Fuji Dynamite 24 geometry
Full frame geometry for the 2015 Fuji Dynamite 24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 525 | 339 | 73 | 70 | 120 | 500 | 305 | 678 | 25 | 652 | 325 | 975 | 42 | 57 |
All measurements in millimetres unless marked (°) for angles.
