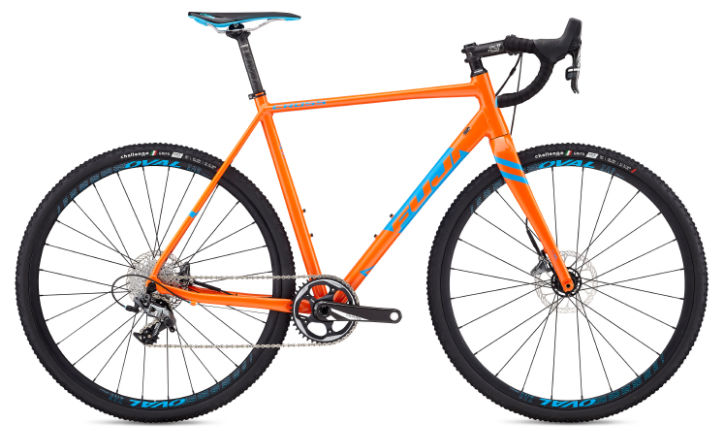

2017 Fuji Cross geometry
Full frame geometry for the 2017 Fuji Cross, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/46 | 522 | 370 | 75.5 | 70 | 100 | 505 | 460 | 746 | 66 | 425 | 1007 | 48 | 74 |
| XS/49 | 535 | 377 | 75 | 71 | 110 | 520 | 490 | 766 | 66 | 425 | 1009 | 48 | 68 |
| S/52 | 554 | 376 | 74 | 71.5 | 130 | 535 | 520 | 794 | 64 | 425 | 1011 | 48 | 65 |
| M/54 | 566 | 378 | 73.5 | 72 | 140 | 545 | 540 | 807 | 64 | 425 | 1006 | 48 | 62 |
| L/56 | 580 | 383 | 73 | 72 | 160 | 560 | 560 | 825 | 64 | 425 | 1021 | 48 | 62 |
| XL/58 | 602 | 391 | 73 | 72 | 180 | 575 | 580 | 844 | 62 | 425 | 1037 | 48 | 62 |
| XXL/61 | 621 | 405 | 73 | 72 | 200 | 590 | 610 | 868 | 62 | 425 | 1058 | 48 | 62 |
All measurements in millimetres unless marked (°) for angles.
