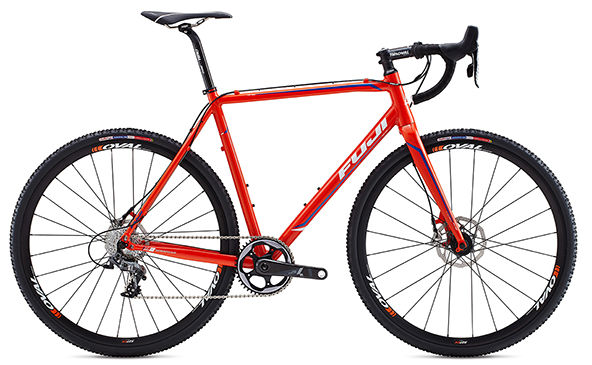

2015 Fuji Cross Disc MKI geometry
Full frame geometry for the 2015 Fuji Cross Disc MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XSS | 519 | 371 | 75 | 71 | 105 | 510 | 480 | 749 | 69 | 583 | 430 | 1003 | 45 | 73 |
| S | 524 | 385 | 75 | 71 | 110 | 525 | 500 | 761 | 69 | 599 | 430 | 1019 | 45 | 73 |
| SM | 544 | 384 | 74.5 | 71.5 | 130 | 535 | 520 | 779 | 69 | 600 | 430 | 1020 | 45 | 70 |
| M | 554 | 376 | 73 | 72 | 140 | 545 | 540 | 792 | 67 | 590 | 430 | 1011 | 45 | 66 |
| ML | 573 | 386 | 73 | 72 | 160 | 560 | 560 | 813 | 67 | 605 | 430 | 1026 | 45 | 66 |
| L | 590 | 395 | 73 | 72 | 180 | 575 | 580 | 830 | 65 | 621 | 430 | 1043 | 45 | 66 |
| XL | 609 | 404 | 73 | 72 | 200 | 590 | 600 | 850 | 65 | 636 | 430 | 1058 | 45 | 66 |
All measurements in millimetres unless marked (°) for angles.
