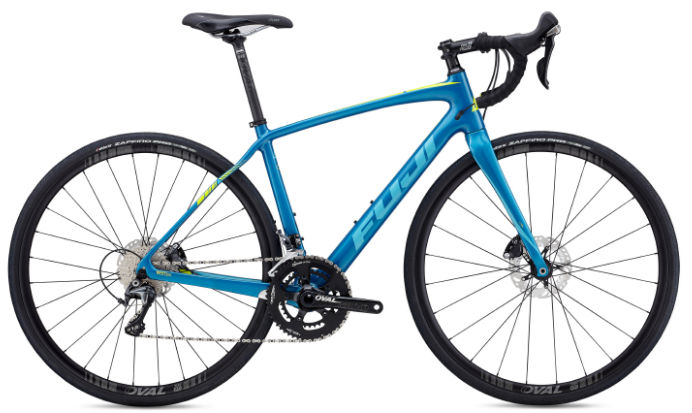

2017 Fuji Brevet geometry
Full frame geometry for the 2017 Fuji Brevet, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/44 | 506 | 369 | 75.5 | 71 | 100 | 500 | 400 | 713 | 69 | 579 | 415 | 984 | 52 | 61 |
| XS/47 | 531 | 368 | 75 | 71.5 | 125 | 510 | 430 | 731 | 69 | 581 | 415 | 986 | 52 | 58 |
| S/50 | 557 | 371 | 74.5 | 72 | 150 | 525 | 460 | 757 | 69 | 588 | 415 | 993 | 52 | 55 |
| M/53 | 576 | 364 | 73.5 | 72 | 170 | 535 | 490 | 779 | 69 | 588 | 415 | 993 | 52 | 55 |
| L/56 | 602 | 377 | 73.5 | 73 | 190 | 555 | 520 | 808 | 69 | 589 | 415 | 994 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
