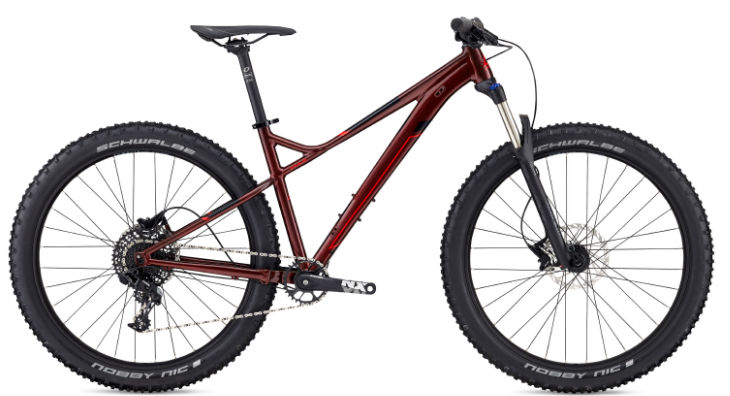

2017 Fuji Bighorn geometry
Full frame geometry for the 2017 Fuji Bighorn, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/15 | 612 | 410 | 74 | 67.5 | 90 | 585 | 381 | 633 | 55 | 698 | 434 | 1126 | 51 |
| L/19 | 621 | 457 | 74 | 67.5 | 100 | 635 | 465 | 685 | 55 | 749 | 434 | 1177 | 51 |
| M/17 | 621 | 432 | 74 | 67.5 | 100 | 610 | 432 | 669 | 55 | 724 | 434 | 1152 | 51 |
| XL/21 | 630 | 479 | 74 | 67.5 | 110 | 660 | 513 | 687 | 55 | 775 | 434 | 1203 | 51 |
| XXL/23 | 640 | 497 | 74 | 67.5 | 120 | 680 | 543 | 709 | 55 | 805 | 434 | 1234 | 51 |
All measurements in millimetres unless marked (°) for angles.
