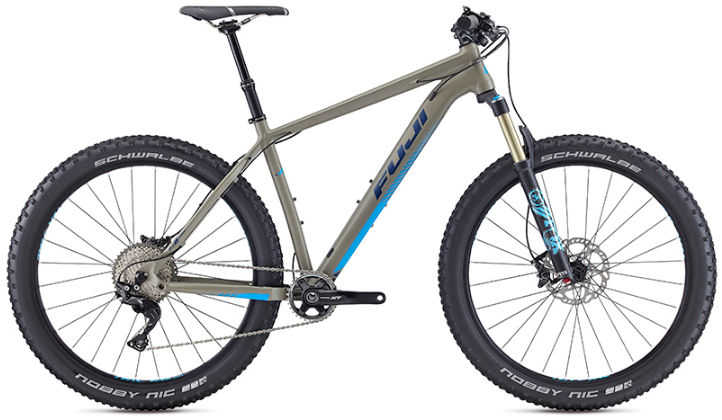

2016 Fuji Bighorn 27.5+ geometry
Full frame geometry for the 2016 Fuji Bighorn 27.5+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M/17 | 642 | 394 | 73 | 69 | 120 | 590 | 432 | 51 | 808 | 443 | 1114 | 55 |
| S/15 | 642 | 384 | 73 | 69 | 120 | 580 | 381 | 51 | 785 | 443 | 1104 | 55 |
| L/19 | 652 | 404 | 73 | 69 | 130 | 603 | 483 | 51 | 836 | 443 | 1127 | 55 |
| XL/21 | 652 | 431 | 73 | 69 | 130 | 630 | 533 | 51 | 858 | 443 | 1155 | 55 |
| XXL/23 | 661 | 449 | 73 | 69 | 140 | 650 | 584 | 51 | 887 | 443 | 1175 | 55 |
All measurements in millimetres unless marked (°) for angles.
