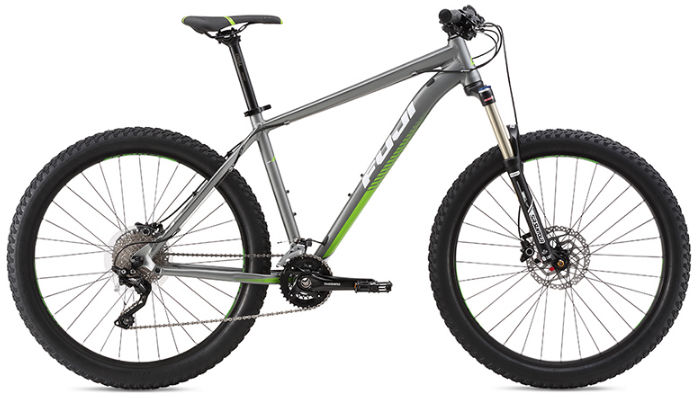

2016 Fuji Beartooth 27.5+ geometry
Full frame geometry for the 2016 Fuji Beartooth 27.5+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L/19 | 657 | 409 | 73 | 69 | 130 | 610 | 483 | 51 | 834 | 453 | 1142 | 60 |
| M/17 | 657 | 389 | 73 | 69 | 130 | 590 | 432 | 51 | 811 | 453 | 1122 | 60 |
| S/15 | 657 | 374 | 73 | 69 | 130 | 575 | 381 | 51 | 787 | 453 | 1107 | 60 |
| XL/21 | 657 | 424 | 73 | 69 | 130 | 625 | 533 | 51 | 857 | 453 | 1157 | 60 |
| XXL/23 | 675 | 434 | 73 | 69 | 150 | 640 | 584 | 51 | 890 | 453 | 1174 | 60 |
All measurements in millimetres unless marked (°) for angles.
