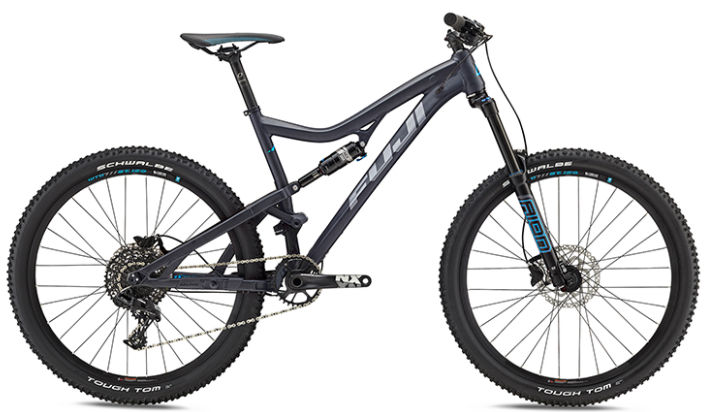

2017 Fuji Auric geometry
Full frame geometry for the 2017 Fuji Auric, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M/17 | 613 | 418 | 68.2 | 67 | 105 | 605 | 432 | 782 | 10 | 438 | 1159 | 44 |
| S/15 | 613 | 384 | 67.5 | 67 | 105 | 572 | 382 | 760 | 10 | 438 | 1126 | 44 |
| L/19 | 622 | 435 | 68.7 | 67 | 115 | 625 | 483 | 771 | 10 | 438 | 1180 | 44 |
| XL/21 | 631 | 452 | 69.2 | 67 | 125 | 645 | 534 | 793 | 10 | 438 | 1202 | 44 |
All measurements in millimetres unless marked (°) for angles.
